Benefits of USD and how it integrates into Omniverse and Nucleus server

If you're working with 3D data in 2025—whether for digital twins, XR experiences, or industrial visualization—you're probably facing the same challenges that have plagued the industry for decades: file format chaos, collaboration friction, and vendor lock-in.

BMW solved this by using USD+Omniverse to connect their global factories in real-time collaboration, reducing planning time. Siemens built predictive maintenance systems using USD-based digital twins with live IoT data. Zaha Hadid Architects are revolutionizing architectural reviews with instant XR streaming to clients worldwide.

This isn't just another tutorial about file formats. This is about understanding the fundamental shift happening in 3D workflows—and why USD+Omniverse+Nucleus represents the most significant advancement in 3D data management since the invention of 3D modeling itself.

By the end of this tutorial, you'll understand exactly why major companies are standardizing on this stack—and whether it's right for your next project.

Table of Contents

GOAL

Providing a High level overview into OpenUSD and it’s integration to Omniverse + Nucleus

NOTES

Intro Metadata

Why USD and Omniverse+Nucleus Integration?

In today’s 3D workflows—whether you're building digital twins, XR experiences, or virtual production pipelines—the complexity of managing assets, teams, and tools is growing fast. What you need isn’t just another format or platform—you need an ecosystem designed to handle scale, flexibility, and collaboration from the ground up.

That’s where Universal Scene Description (USD) comes in. Originally developed by Pixar, USD is more than a file format—it’s a powerful, extensible framework for representing complex 3D data in a structured, non-destructive, and layered way.

And when you combine USD with NVIDIA Omniverse, you unlock real-time multi-user collaboration, live simulation, and interoperability across the most common tools in the industry. But Omniverse doesn’t work alone—at the heart of Realtime collaboration is Nucleus: the real-time data backbone that synchronizes users, tracks changes, and ensures that everyone stays on the same page, even in globally distributed teams.

This tutorial sets the foundation for everything that follows.

Beyond Omniverse: USD as a Universal Bridge

One of the biggest advantages of adopting USD isn’t just what it does inside Omniverse—it’s what it unlocks everywhere else.

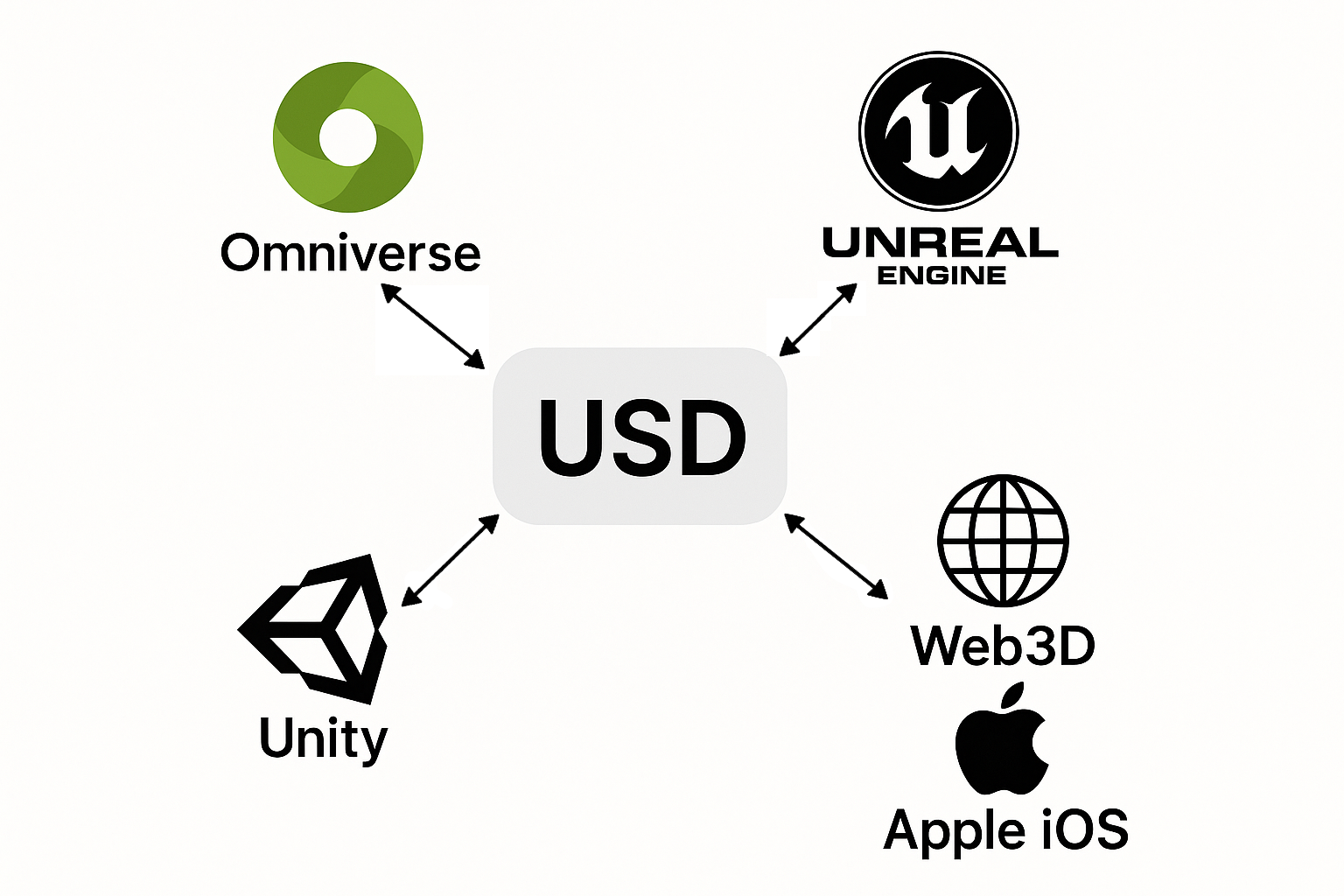

USD is increasingly becoming the universal language of 3D content. It’s natively supported or easily integrated with:

• Unreal Engine – via native import and live workflows

• Unity – with ongoing support through the USD for Unity package

• Web3D – through USD-to-glTF pipelines and emerging real-time renderers

• Apple Ecosystem – where USDZ is the native 3D format for iOS and VisionOS (used in AR Quick Look and Vision Pro)

• *Products Using USD -** USD has support in many 3D Content Creation Applications and Ecosystems.

This means a single USD asset can flow seamlessly across desktop, mobile, XR, and cloud platforms—with fidelity and intent preserved.

In other words, investing in USD isn’t just about Omniverse—it’s about future-proofing your content and workflows across the entire digital 3D landscape.

Quick-Start

The Solution in 60 Seconds:

USD (Universal Scene Description) = The "HTML for 3D worlds" - a unified language all tools can speak

Omniverse = The "Google Docs for 3D" - real-time collaboration platform built on USD

Nucleus = The "Dropbox for 3D assets" - central server enabling live sync and version control

Immediate Benefits:

CODE

✅ One format replaces dozens of conversion headaches
✅ NUCLEUS for Real-time collaboration like in Google Docs, but for 3D scenes
✅ Instant XR streaming to any device (iPhone, Vision Pro, headsets)
✅ Version control and asset management built-in
✅ Works with existing tools (DCC + CAD + Robotics + Simulation)

Real-World Example:

BMW uses this stack to let their global factories collaborate on digital twins in real-time, streaming live data to AR headsets for production line optimization.

Want to see it in action?

1. Download INNOACTIVE Omniverse Composer (free)

2. Open any sample USD file

3. See instant collaboration, XR streaming, and multi-tool workflows

Quick Deep Dive

The Three-component Architecture

Think of USD+Omniverse+Nucleus as a comprehensive ecosystem:

USD: versatile + universal + nondestructive 3D dataformat

USD isn't just another file format - it's a composition system that solves fundamental problems:

• Non-Destructive Layering: Like Photoshop layers, but for entire 3D scenes

• Powerful References: Assemble complex worlds from modular components

• Variants: Switch between different versions (materials, LODs, configurations) instantly

• Extensible Schemas: Add custom data (IoT sensors, physics properties, business logic)

• Performance at Scale: Handle trillion-polygon scenes with efficient streaming

Omniverse: USD + Real-Time Collaboration

Omniverse transforms USD from interchange format to live collaboration platform:

• Multi-User Editing: Multiple artists editing the same scene simultaneously

• Live Updates: See changes from other tools instantly (across DCC + CAD + Robotics + Simulation)

• RTX Omnivers Renderer: Photorealism + Highperformance without timeconsuming Dataprep

• XR Streaming with Innoactive: Simple deployment to any XR device | Orchestration for Global scaling via Innoactive Platform

• Physics Simulation: Real-time physics for digital twins | import simulations from other Vendors

Nucleus: The Collaboration Brain

Nucleus provides the infrastructure USD+Omniverse needs:

• Asset Management: Centralized storage with automatic version control

• Change Tracking: Every edit is tracked, reversible, and visible to team members

• Access Control: Manage who can edit what, when

• Real-Time Sync: Sub-second updates across global teams

• Cloud/On-Premise: Deploy anywhere your data needs to live

Additional helpers: USD Tools

During dataPrep, not everything can be done in Omniverse:

• ShapeFX Loki: Not just a viewer—your all-in-one OpenUSD tool (based on OpenDCC)

• Blender: great to work on single Assets

• Maya: load USD stages directly in the viewport for interactive editing without import/export

• USDview: light-weight application developed by Pixar Animation Studios for viewing, navigating and introspecting USD stages

General Overview

The "File Format Chaos" Problem | why data governance is key

The Challenge Every 3D Team Faces:

Picture this scenario: Your design team Composers beautiful CAD models, your artists add materials and lighting in specialized software, your engineers run simulations, and your marketing team needs Content. Real-time visualization for client presentations + classic stills and Videos.

The Traditional Pain Points:

• File Format Hell: .dwg, .3ds, .obj, .fbx, .gltf , .Step , .XYZ- and each tool speaks a different language

• Version Nightmares: "Is this the latest model?" "Did the material changes get applied?" "Which simulation results are current?"

• Collaboration Friction: Email attachments, manual imports, broken links, lost work

• Platform Lock-in: Vendor-specific formats trap your data and limit tool choices

• XR/Digital Twin Obstacles: Getting 3D data into AR/VR experiences requires complex conversion pipelines

The Real Cost is friction and Loss of Speed:

• Teams spend 40-60 of their time on data wrangling instead of creative work.

• Decisionmakers can't see the whole picture and are hindered in their decision making process

Why USD is the “HTML of 3D” — and What Problems It Solves

Think of USD as doing for 3D what HTML did for the web.

Before HTML, content on the internet was fragmented—each platform had its own format, its own renderer, and no easy way to mix content from different sources. HTML gave us a structured, extensible way to describe layouts, embed media, and enable interactivity across any browser.

USD does the same for 3D.

It provides a common, non-destructive way to represent everything from geometry and materials to lights, cameras, rigging, and animation—while keeping each element in its own layer and enabling scalable, reusable scene composition.

Here’s what it solves:

•  Fragmented File Formats: USD replaces a tangle of proprietary formats (OBJ, FBX, Alembic, etc.) with a unified structure that works across the pipeline.

• Tool Lock-In: Artists and engineers can work in their preferred tools—USD scenes can be authored in Maya, Substance, Blender, Houdini, or Omniverse and still remain interoperable.

• Destructive Overwrites: Traditional formats flatten scene data. USD preserves layers, overrides, and variants—so teams can iterate without breaking each other’s work.

• One Scene, Many Views: You can load just what you need—a low-res proxy, a specific LOD, or a particular material variant—without loading the entire scene.

• Collaboration Chaos: USD supports clean handoffs between teams, version control at the asset level, and live updates when used with platforms like Omniverse.

In short: USD brings structure, scalability, and sanity to modern 3D workflows. It’s not just a better file format—it’s a smarter way of thinking about scenes.

Here’s a clean, side-by-side comparison table you can drop directly into your tutorial:

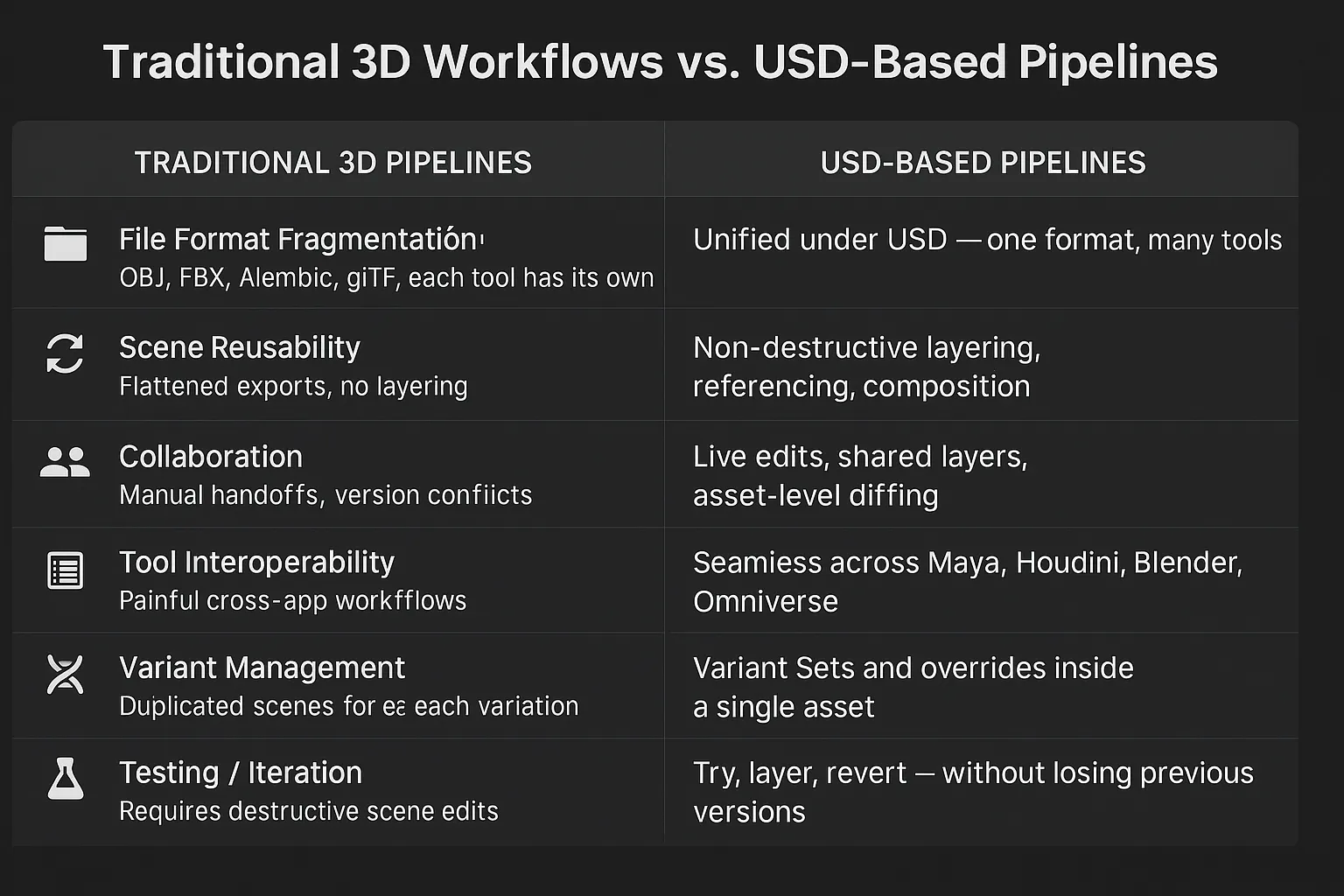

Traditional 3D Workflows vs. USD-Based Pipelines

The Historical Context

Before USD (Pre-2016):

• Every 3D application used proprietary formats

• Collaboration required complex conversion pipelines

• Data integrity was constantly at risk

• Real-time collaboration was impossible

• XR deployment required complete rework

The Pixar Innovation:

USD was born from Pixar's need to manage the complexity of films like Toy Story 4 (1 trillion polygons). They open-sourced it because the industry needed a universal solution.

The NVIDIA Amplification:

NVIDIA built Omniverse on USD to solve enterprise collaboration problems, adding real-time features, XR streaming, and physics simulation that film studios didn't need but industries desperately wanted.

Core USD Principles

1. Composition Over Conversion

Instead of converting between formats, USD composes different data sources:

from pxr import Usd, UsdGeom, Sdf

def create_digital_twin(stage_path):
    # Create a new USD stage
    stage = Usd.Stage.CreateNew(stage_path)

    # Define a new Xform prim at the root of the stage
    digital_twin_prim = stage.DefinePrim('/DigitalTwin', 'Xform')

    # Create a reference to the geometry file
    geometry_prim = stage.DefinePrim('/DigitalTwin/Geometry', 'Xform')
    geometry_prim.GetReferences().AddReference('geometry.usda', '/Model')

    # Create a reference to the materials file
    materials_prim = stage.DefinePrim('/DigitalTwin/Materials', 'Xform')
    materials_prim.GetReferences().AddReference('materials.usda', '/Look')

    # Create a payload to the physics file
    physics_prim = stage.DefinePrim('/DigitalTwin/Physics', 'Xform')
    physics_prim.SetPayload('physics.usda', '/Simulation')

    # Save the stage to a file
    stage.GetRootLayer().Export(stage_path)

# Example usage
stage_path = 'digital_twin.usda'
create_digital_twin(stage_path)

• Problem: Traditional pipelines convert between formats (CAD → FBX → Game Engine)

• USD Solution: Keep original data sources, compose them together (Normally as USD, but USD can also ‘hold’ e.g. an FBX and act as an ‘container’)

• Benefit: No data loss, maintains fidelity, enables updates

2. Non-Destructive Workflows

• Problem: Edits traditionally overwrite original data

• USD Solution: Layered overrides preserve source data

• Benefit: Infinite undo, multiple variations, collaborative editing

3. Scalable Performance

• Problem: Large scenes become unmanageable

• USD Solution: Lazy loading, instancing, payloads

• Benefit: Handle massive datasets efficiently

Real-World Impact

This structure enables:

• CAD teams update geometry without breaking materials

• Design teams iterate on materials without affecting physics

• Engineering teams run simulations without loading unnecessary data

• Stakeholders can view simplified versions for reviews

Real-World Success Stories

BMW Group: factories world wide are using Omniverse for production planning

• Challenge: Global teams couldn't collaborate on factory layouts

• Solution: Real-time USD collaboration with XR visualization

• Result: massive reduction in planning time, improved ergonomics

Siemens: Digital twin workflows for manufacturing

• Challenge: Engineering simulations isolated from design teams

• Solution: USD-based digital twins with live IoT data

• Result: Predictive maintenance, optimized production

Zaha Hadid Architects/ Zaha Hadid: Architectural visualization and collaboration

• Challenge: Architects, engineers, clients couldn't review designs together

• Solution: Real-time Omniverse collaboration with instant XR sharing

• Result: Faster approvals, better client communication

Known Limitations

Technical Limitations

• No Nurbs surfaces supported (yet)

• No Skeletal Meshes (yet)

• Limited procedural content support - No direct Houdini/Blender geometry nodes

• No native particle systems - Must be baked to geometry or cached

• Limited subdivision surface control - Not as flexible as specialized DCCs

• No built-in fluid simulation - Requires external solvers and caching

Workflow Limitations

• Steep learning curve - Requires understanding of composition arcs and USD concepts

• Limited non-destructive modeling - Most geometry edits require external DCCs

• No native sculpting tools - Must use external applications

• Complex material authoring - MDL materials require specialized knowledge

• Version control complexity - Binary USD files don't diff well in Git

Performance Limitations

• Memory intensive - Large scenes can consume significant RAM

• GPU dependency - RTX features require NVIDIA hardware

• Network bandwidth sensitive - Real-time collaboration needs stable, fast connections

• Limited mobile support - Primarily desktop/workstation focused

• Startup time - Large projects can have lengthy initialization

Integration Limitations

• Limited CAD bidirectional workflow - Mostly import-only from major CAD systems

• Limited cloud rendering options - Primarily NVIDIA cloud infrastructure

• Connector dependency - Third-party software support varies by vendor

Platform Limitations

• Windows/Linux focus - Limited macOS support for some features

• Enterprise licensing costs - Can be expensive for large teams

• Internet dependency - Nucleus collaboration requires constant connectivity

• Limited offline capabilities - Some features require cloud services

• NVIDIA hardware preference - Optimized for NVIDIA GPUs

Content Creation Limitations

• No native animation tools - Requires external DCCs for character animation

• Limited texture painting - Must use external applications like Substance

• Complex shader authoring - MDL requires programming knowledge

• Limited 2D integration - Primarily 3D focused workflow

A more detailed Understanding…

The Technical Foundation That Powers USD

Now that you understand why USD+Omniverse+Nucleus matters, let's provide an overview of how it actually works. This section reveals the technical architecture that makes non-destructive 3D collaboration possible at scale.

USD isn't just another file format—it's a composition system built on:

• four revolutionary concepts + Three-Tier Architecture

Four Revolutionary Concepts = WHAT USD Does (Benefits) These are the high-level capabilities that make USD different from other 3D formats:

1. Layered Composition: Multiple files combine to create a single scene

2. Non-Destructive Editing: Original data never gets overwritten

3. Automatic Conflict Resolution: The LIVRPS system determines which edits win

4. Scalable Performance: Payloads and references enable massive scenes

The Three-Tier Architecture = HOW USD Works (Implementation)

This is the technical system that actually delivers those benefits:

COMPOSITION ARCS → How files reference each other
   ↓
LIVRPS RESOLUTION → Which edits take precedence
   ↓
LAYER STACKING → How final scenes are assembled

How They Connect:

Think of It Like This:

• Four Concepts = The "marketing promises" (what USD can do for you)

• Three-Tier Architecture = The "engineering reality" (how USD actually works)

Both are accurate, but they describe USD from different perspectives - business value vs. technical implementation.

This system is what enables BMW's Global factories to collaborate in real-time, Siemens to build predictive maintenance systems, and Zaha Hadid Architects to stream architectural reviews to any device instantly.

We will provide a high level understanding of :

• USD Layers: The transparent sheet system that keeps everything organized

• LIVRPS Resolution: The hierarchy that prevents conflicts (Local > Inherits > Variants > References > Payloads > Specializes)

• Composition Arcs: How References and Payloads actually work in practice

• Nucleus Integration: How real-time collaboration happens behind the scenes

• Performance Optimization: Why this architecture scales to trillion-polygon scenes

Real-World Impact:

A change to a material in one tool automatically propagates to all connected applications in real-time—without breaking anything or requiring manual exports, if done right.

BUT, even though composition Arcs, Referencing and Layering are Powerful… use those with care!

Note: the ability to build complicated structures, does not mean that one has to introduce unnecessary complexity. If used right, USD will enable you to walk from one mountain top to another via a rim, but used wrongly the abyss is mile deep.

If you run into issues with e.g. Variant sets not working as expected because of an LIVRPS conflict. As a last chance, you can always flatten layers of Flatten the scene to make it work. Even though it may not be the proper or long-term solution, it may still save your bud, at a presentation or an exhibition as time runs out.

Step 1: Understanding USD's Composition Engine

What Are USD Layers?

Think of USD layers like transparent sheets stacked on top of each other. Each sheet can contain part of your scene - geometry, materials, animations, or modifications. When you look through all the sheets together, you see the complete picture.

Why This Matters for Digital Twins:

• Factory layout on one layer

• Equipment variants on another layer

• Real-time sensor data on a third layer

• Maintenance schedules on yet another layer

When something changes (new equipment, sensor update, maintenance alert), you only modify the relevant layer. Everything else stays untouched.

LAYERS are part of the LIVRPS system.

The LIVRPS System (the secret sauce):

LIVRPS = USD's conflict resolution system that determines which value wins when multiple sources define the same property.

USD resolves conflicts using a strict hierarchy:

The Bottom Line: LIVRPS ensures that emergency overrides (Local) always beat design defaults (Variants), and design defaults always beat template fallbacks (Specializes). It's the reason USD digital twins can handle complex real-world scenarios reliably.

Note: Not all USD features are implemented in every tool, You may have to open your USD as USDA and solve LIVRPS conflicts on the code Level LIVRPS Debugging with IDE

Example: Building a Digital Twin

#usda 1.0
# Root assembly layer
def "Factory" {
    # Reference base factory layout
    references = @factory_base.usda@</Layout>

    # Add specific equipment variants
    over "ProductionLine_A" (
        variants = { string equipment = "highSpeed" }
    ) {
        # Local override for this specific line
        float efficiency = 0.95
    }
}

# -------------------------detailed Breakdown -----------------------------------

#usda 1.0                                    # ✅ Standard USDA (USD ASCII) file header
                                             # Required for all USD ASCII files

# Root assembly layer
def "Factory" {                              # ✅ Defines new prim called "Factory"
                                             # "def" creates a new prim definition

    # Reference base factory layout
    references = @factory_base.usda@</Layout>  # ✅ REFERENCE (R in LIVRPS)
                                             # Brings in /Layout prim from factory_base.usda
                                             # Non-destructive - original file untouched
                                             # Creates composition arc to external file

    # Add specific equipment variants
    over "ProductionLine_A" (                # ✅ OVERRIDE statement
                                             # "over" modifies existing prim
                                             # ProductionLine_A must exist in referenced /Layout
        variants = { string equipment = "highSpeed" }  # ✅ VARIANT selection (V in LIVRPS)
                                             # Sets equipment variant to "highSpeed"
                                             # Switches between predefined alternatives
                                             # Must be defined in referenced file or inheritance
    ) {
        # Local override for this specific line
        float efficiency = 0.95              # ✅ LOCAL OPINION (L in LIVRPS - strongest)
                                             # Direct property assignment
                                             # Will override any conflicting values
                                             # Strongest opinion in LIVRPS hierarchy
    }
}

# LIVRPS DEMO: This code shows 3 of 6 composition arcs:
# L - Local opinion (efficiency = 0.95)
# V - Variant selection (equipment = "highSpeed")
# R - Reference (@factory_base.usda@</Layout>)

# REAL-WORLD WORKFLOW:
# 1. Design team creates factory_base.usda (reusable base)
# 2. Engineering adds equipment variants (standard/highSpeed/maintenance)
# 3. Production configures specific factory instances
# 4. Operations adjusts efficiency based on real performance data

LIVRPS in Action:

This Digital Twin code demonstrates 3 of the 6 LIVRPS concepts:

What This Achieves:

• Modular Design: Base factory layout is reusable

• Flexible Configuration: Equipment can be switched via variants

• Custom Overrides: Specific efficiency settings per line

• Non-Destructive: Original factory_base.usda stays pristine

Real-World Workflow:

1. Design team creates factory_base.usda with standard layout

2. Engineering team adds equipment variants (standard, highSpeed, maintenance)

3. Production team uses this file to configure specific factory instances

4. Operations team adjusts efficiency values based on real-world performance

This is exactly how factories can share base designs while maintaining local customizations!

Step 2: Nucleus Collaboration Workflows

Setting Up Team Collaboration:

1. Asset Publishing: Teams publish to shared Nucleus server

2. Live References: Projects reference shared assets automatically

3. Change Propagation: Updates flow to all dependent projects instantly

4. Conflict Resolution: USD's composition handles overlapping edits gracefully

Example Workflow:

Design Team → Publishes materials to Nucleus
     ↓
Engineering Team → References materials in simulation
     ↓
Marketing Team → Uses same materials for product visualization
     ↓
All teams see updates instantly when materials change

NUCLEUS befenfits + Limitations

When to Use Nucleus

• 🟢 You need real-time, multi-user collaboration across Omniverse clients (e.g. Create, Composer)

• 🟢 You want live USD layer editing, variant switching, and referencing between users and tools

• 🟢 You're using Omniverse-native apps that support Nucleus mounting and live sync out of the box

• 🟢 You want built-in versioning and checkpoints without needing Git or Perforce

• 🟢 You want centralized scene graph coordination (USD + MDL + Physics + Anim) with consistent paths

• 🟢 You’re working on shared stages or environments intended for XR/streaming preview

✅ Bonus:

• 🔸 Use Nucleus Navigator (standalone app) if you need to browse or manage Nucleus-hosted content without opening Omniverse apps

• 🔸 This helps artists and producers check file paths, download assets, or verify version history quickly

When to Use Nucleus + Omniverse Drive (Beta)

• 🟢 You want to work in an IDE or DCC that can’t directly access Nucleus mounts (e.g. Cursor, VS Code, Photoshop)

• 🟢 You need local file access to scripts or USDs without giving up the central Nucleus pipeline (USDA files!, keep Assets with Geometry in USD/ USDC

• 🟢 You’re using a custom pipeline that expects a local folder structure but still want Nucleus sync

• 🟡 You’re okay with a one-way file deletion model: changes sync both ways, but deletes must happen from the Nucleus side

• 🟡 You understand that file locks, overwrites, and “stale edits” can occur if multiple users edit mirrored copies offline

🚫 Avoid:

• Combining DriveData with other cloud sync tools like Dropbox, Google Drive, Synology, or OneDrive — this creates a sync feedback loop that breaks file states and can corrupt the Nucleus structure

• FYI: Google Drive creates ‘funny’ short cut paths, that will definitely mess up your references and payloads and causses data loss while saving!!!

When Not to Use Nucleus

• 🔴 Your tools can’t write to Nucleus, and you don’t want to deal with DriveData workarounds (e.g. Photoshop, IDEs without support)

• 🔴 You’re building automated pipelines that depend on filesystem-native version control (e.g. Git hooks, CI builds, Perforce integrations)

• 🔴 You require branch-based workflows, rollback logic, or merge tracking beyond Nucleus's checkpoint model

• 🔴 You need to delete or archive files frequently from local systems and expect those changes to reflect in the Nucleus mount (DriveData limitation)

• 🔴 You're in an enterprise environment with strict backup/versioning policies requiring off-cloud VCS (e.g. Assembla, Diversion, GitHub Enterprise)

• 🔴 You need to use external mirror systems (Dropbox, Synology, etc.) that conflict with Nucleus sync behaviors

Step 3: Omniverse Application Ecosystem

• Composer: General-purpose content creation and collaboration

• Explorer: for exploring and collaborating on large Open USD scenes

• Viewer: Lightweight, viewport-only review and presentation tool, easily streamed and interacted with remotely, e.g. content to web pages

• Kit Service: useful for creating headless services leveraging Omniverse Kit functionality

• Kit Base Editor: A minimal application for loading, manipulating and rendering OpenUSD content from a graphical interface.

• Farm: Distributed rendering and simulation

• CloudXR streaming service for Omniverse: Instant deployment to any XR device

Integration Points:

• Maya/3ds Max: Direct USD export/import with live sync

• Maya: load USD stages directly in the viewport for interactive editing without import/export

• Houdini: Deep USD integration via Solaris

• Revit/AutoCAD: Automatic USD conversion with metadata preservation

• **Unreal/Unity**: USD import with real-time Asset streaming

• ShapeFX Loki: Not just a viewer—your all-in-one OpenUSD tool (based on OpenDCC)

• Blender: great to work on single Assets | Native USD support + Omniverse connector

• USDview: light-weight application developed by Pixar Animation Studios for viewing, navigating and introspecting USD stages

Step 4: XR Streaming Architecture

The Technical Flow:

USD Scene → Nucleus → Omniverse + RTX Rendering → Innoactive XR Streaming

Supported Platforms:

• Apple Vision Pro: Native USDZ support + CloudXR Streaming

• Meta Quest: WebRTC streaming

• iOS/Android: Web-based AR via browsers

• HoloLens: Mixed reality applications

• Web Browsers: No-install experiences

Example: Instant AR Sharing

1. Designer modifies product in Composer

2. Changes sync to Nucleus automatically

3. XR stream updates live on stakeholder's devices

4. Feedback flows back through the same pipeline

Step 5: Performance and Scale Considerations

Memory Management:

• Scene Graph Instancing: Identical objects share memory

• Payload Management: Control what data loads when

• LOD Variants: Switch detail levels automatically

• Streaming: Load geometry as needed for viewport

Network Optimization:

• Delta Sync: Only changes are transmitted

• Compression: Automatic optimization for network speed

• Caching: Intelligent local caching reduces bandwidth

• Offline Mode: Work disconnected, sync when connected

Hardware Scaling:

• CPU: Multi-threaded USD composition and traversal

• GPU: RTX-accelerated rendering and simulation

• Memory: Efficient sharing across applications

• Storage: Automatic compression and deduplication

How to Adapt USD+Omniverse for Other Industries

Manufacturing & Industrial Automation

Use Cases:

• Digital twin factories with real-time IoT data

• Production line optimization and ergonomics

• Training simulations with hazard modeling

• Predictive maintenance visualization

Adaptation Strategy:

# Manufacturing-specific schemas
def "ProductionLine" {
    # IoT sensor integration
    rel sensors = [</Sensors/Temperature>, </Sensors/Vibration>]

    # Efficiency variants based on configuration
    variants = { string configuration = "standard" }
    variantSet "configuration" = {
        "standard" { float throughput = 100 }
        "optimized" { float throughput = 130 }
    }

    # Safety zone definitions
    def "SafetyZones" {
        # Define hazard areas for training
    }
}

#-------------------- detailed Breakdown --------------------------------------

# Manufacturing-specific schemas
def "ProductionLine" {                       # ✅ Defines custom production line prim
                                            # Custom schema for manufacturing workflows
                                            # Extensible for industry-specific properties

    # IoT sensor integration
    rel sensors = [</Sensors/Temperature>, </Sensors/Vibration>]  # ✅ RELATIONSHIPS
                                            # Creates connections to sensor prims
                                            # Enables real-time data binding
                                            # Paths point to sensor data sources
                                            # Non-destructive - sensors can be shared

    # Efficiency variants based on configuration
    variants = { string configuration = "standard" }             # ✅ VARIANT selection (V in LIVRPS)
                                            # Sets current configuration variant
                                            # Allows switching between operational modes
                                            # Default selection is "standard"

    variantSet "configuration" = {          # ✅ VARIANT SET definition
                                            # Defines switchable alternatives
                                            # Enables runtime configuration changes
        "standard" { float throughput = 100 }                    # ✅ Standard mode configuration
                                            # Baseline throughput setting
                                            # Conservative operational parameters
        "optimized" { float throughput = 130 }                   # ✅ Optimized mode configuration
                                            # High-performance throughput setting
                                            # 30% efficiency increase over standard
    }

    # Safety zone definitions
    def "SafetyZones" {                     # ✅ Nested prim for safety data
                                            # Hierarchical organization
                                            # Separates safety from production data
        # Define hazard areas for training   # ✅ Custom safety schema extension
                                            # Industry-specific safety compliance
                                            # Enables training simulation integration
                                            # Hazard modeling for worker safety
    }
}

# MANUFACTURING ADAPTATION STRATEGY:
# 1. Custom schemas for IoT sensor integration (rel sensors)
# 2. Variants for operational configurations (standard/optimized)
# 3. Hierarchical safety data organization (SafetyZones)
# 4. Real-time data binding through relationships
# 5. Non-destructive configuration switching via variants

# REAL-WORLD BENEFITS:
# - Digital twin factories with live IoT data
# - Production line optimization through variants
# - Safety training with hazard modeling
# - Predictive maintenance visualization
# - Multi-site collaboration on factory designs

This demonstrates how USD's extensible schema system adapts to manufacturing workflows while maintaining all the core composition benefits!

Architecture & Construction

Use Cases:

• Building Information Modeling (BIM) collaboration

• Client presentations with instant XR walkthroughs

• Construction sequencing and planning

• Facilities management with digital twins

Adaptation Strategy:

• Material Libraries: Standardized architectural materials with PBR properties

• Building Codes: Custom schemas for compliance validation

• Construction Phases: Variants for different project stages

• MEP Integration: Mechanical, electrical, plumbing as separate layers

Entertainment & Media

Use Cases:

• Film/TV production pipelines

• Game asset production and optimization

• Virtual production with LED walls

• Interactive entertainment experiences

Adaptation Strategy:

• Shot Management: Each shot as USD layer with overrides

• Asset Variants: LOD, damage states, seasonal variations

• Animation Caching: Efficient storage of character animation

• Real-time Preview: Director and artists see changes instantly

Scientific Visualization & Research

Use Cases:

• Molecular visualization and drug discovery

• Astronomical data visualization

• Climate simulation presentation

• Research collaboration across institutions

Adaptation Strategy:

• Data Binding: Connect USD to scientific datasets

• Time-based Variants: Show simulation progression

• Measurement Tools: Built-in analysis capabilities

• Publication Ready: High-quality rendering for papers

Implementation Planning Template ( going beyond POC’s)

Phase 1: Assessment (2-4 weeks)

• Audit existing 3D tools and workflows
• Identify collaboration pain points
• Define success metrics
• Select pilot project scope

Phase 2: Foundation (4-8 weeks)

• Install Omniverse and Nucleus infrastructure
• Train core team on USD fundamentals
• Establish asset naming conventions
• Composer standardized material libraries

Phase 3: Integration (8-12 weeks)

• Connect existing tools via USD connectors
• Migrate pilot project to USD workflow
• Implement custom schemas if needed
• Establish team collaboration protocols

Phase 4: Scale & Optimize (Ongoing)

• Roll out to full production teams
• Optimize performance for specific use cases
• Develop custom tools and automation
• Train extended team and stakeholders

Getting Started

You can find the first steps in the Getting started with Omniverse section.

First Project Ideas for quick POC’s:

• Product Visualization: Import a CAD model, add materials, stream to XR

• Architectural Walkthrough: Compose a simple space, add lighting, share with team

• Digital Twin: Connect sensor data to a 3D model for live monitoring

Learning Path

Week 1: Foundations

• Complete Tutorial 2: USD Project Structure and File Organization

• Experiment with basic USD authoring in Composer

• Set up Nucleus server (local or cloud)

Week 3: Specialization

• Tutorial 4: USD Layers and Variants (LIVRPS)

• Tutorial 5: LIVRPS Debugging with IDE

• Focus on your industry-specific use cases

Week 2: Collaboration

• Practice multi-user workflows with colleagues

• Learn variant and reference workflows

• Try connectors for your existing tools

Month 2-3: Production

• Tutorial 6: Variant Sets with Nested Animations

• Custom schema development if needed

• Performance optimization for your scale </aside>

Community Resources

Official Documentation:

• OpenUSD.org: Pixar's official USD documentation

• docs.omniverse.nvidia.com: NVIDIA Omniverse guides

• USD Survival Guide: Community-driven practical guide

• Awesome USD: Matias Codesal

Community Support:

• NVIDIA Developer Forums: Technical questions and troubleshooting

• USD Interest Group: Industry working group for standards

• Discord Communities: Real-time chat with practitioners

Training Programs:

• NVIDIA DLI: Deep Learning Institute USD courses

• SIGGRAPH Sessions: Annual conference presentations

• Vendor Training: Maya, Houdini, Blender USD-specific training

When USD+Omniverse is Right for You

Strong Fit Indicators:

• ✅ Multi-tool workflows with conversion pain

• ✅ Team collaboration challenges

• ✅ XR/digital twin requirements

• ✅ Performance needs at scale

• ✅ Future-proofing against vendor lock-in

Consider Alternatives When:

• ❌ Single-tool, single-user workflows

• ❌ Simple file sharing needs

• ❌ Legacy system integration constraints

• ❌ Limited technical resources for learning curve

Best Practices

• Always modularize your USD scenes: separate logic, geometry, and materials for clarity and scalability.

• Use Nucleus for real-time collaboration and versioning, but document your pipeline for future-proofing.

• Prefer non-destructive workflows: leverage USD's layering and referencing instead of destructive edits.

• Validate your USD files early and often using Omniverse Composer, usdview, or automated scripts.

• Document naming conventions and structure for your team—consistency is key for scaling.

• Start simple: avoid unnecessary complexity in your first USD+Omniverse projects, then iterate as you learn.

FAQ

Q: What is USD and why is it important for 3D workflows?

A: USD (Universal Scene Description) is an open-source framework developed by Pixar for describing, composing, and collaborating on complex 3D scenes. It enables non-destructive workflows, powerful layering, and seamless collaboration across tools and teams.

Q: How do I fix “my changes don’t stick” or edits seem to be ignored in Omniverse?

A: This is usually a composition or authoring layer issue. Make sure you are editing the correct (authoring) layer. Use the Layer Stack and Composition Arc tools in Omniverse Composer or usdview to check which layer is active. Sometimes, edits are masked by stronger opinions in other layers (see LIVRPS hierarchy).

Q: What is LIVRPS and why does it matter?

A: LIVRPS stands for Local, Inherits, Variant, Reference, Payload, Specializes. It’s the order of strength for composition arcs in USD. Local opinions always win over others, so understanding this hierarchy is key to troubleshooting why certain changes do or do not take effect.

Q: Why do vendor-exported USD files sometimes “work” but break in real workflows?

A: Not all USD exporters are equal. Some third-party tools create USD files with absolute paths, missing schemas, or non-standard structures. Always inspect vendor files in usdview or Omniverse, and be prepared to refactor, fix paths, or convert to USDA for easier editing.

Q: How do I debug material or variant issues in USD?

A: Use the Layer Stack and Variant Editor in Omniverse Composer. If issues persist, open the USDA file in a text editor or IDE and look for conflicting bindings or variant selections. Use Python scripts with the pxr.Usd API to inspect and resolve conflicts.

Q: What are the most common mistakes in USD data preparation?

A: Embedding geometry in logic layers, using absolute paths, inconsistent naming, and failing to separate materials or configuration. These can cause slow loading, broken references, and difficult debugging.

Q: How can I optimize performance for large USD scenes?

A: Use payloads for heavy geometry, keep logic layers in USDA (ASCII) for readability, and convert to USD/USDC (binary) for final assets. Batch load/unload assets as needed and avoid monolithic files.

Q: What tools can I use to debug and edit USD files?

A: Omniverse Composer, usdview, Maya, ShapeFX Loki, and IDEs like VS Code (with USD extensions) are all useful. For batch operations or automation, use Python scripts with the pxr.Usd API.

Q: How do I ensure my USD pipeline is future-proof and scalable?

A: Follow naming conventions, document your structure, automate validation, and keep logic, geometry, and materials modular. Regularly review and refactor as your project grows or requirements change.

Q: Where can I find more resources or examples?

A: See the “Related Resources” section at the end of this tutorial for links to official documentation, community guides, and real-world case studies.

Series Navigation

Previous: Authoring and optimizing USD workflows for industrial use with Omniverse

Next: USD Project Structure and File Organization Best Practices

Series Index: Authoring and optimizing USD workflows for industrial use with Omniverse

Related Resources

Reference Guides

• Naming Conventions Unified

• Global Glossary

External Documentation

• OpenUSD Official Documentation

• NVIDIA Omniverse Platform Overview

• USD Survival Guide

• Pixar's USD Pipeline Story

Project Examples

• Download examples in Omniverse Launcher → Library

• Real-world case studies: BMW, Siemens, Foster + Partners
